Brand Summery

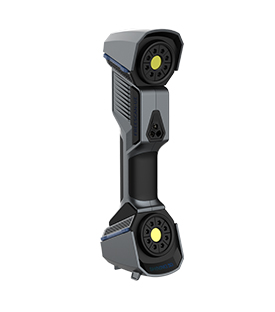

As the blue laser handheld 3D scanner of the FreeScan series, FreeScan UE inherits the iconic features of *high accuracy* and *high precision*. At the same time ergonomic and lightweight equipment design make it easier to hold and operate, providing metrology-grade, high-accuracy inspection solutions for the automotive, transportation, aerospace industry, moulding inspection, energy generation, machinery manufacturing etc.
Features
Portable and lightweighted
The device weights only 750g, facilitating handheld scanning and avoiding fatigue due to long working time.
Seamless Docking to inspection software
The scan data can be imported into inspection softwares like Geomagic Control X, Verisurf and with one click, increasing the inspection efficiency.
Easy Operation
User-friendly operating system with simple software setup and guidance through the whole workflow process, allowing users to master the operation at ease.
High Efficiency
The scan area can reach 510*520mm, providing larger field of view for a smoother and more efficient scanning experience.
Metrology-class High Accuracy
Accuracy up to 0.02mm, Volumetric accuracy 0.02mm+0.04mm/m.
Stability Of Repetitive Measurement
When measuring the same workpiece repeatedly, FreeScan UE delivers consistent results, proving stability and reliability.
Wide Range Of Material Adaptations
Supporting the scan of black and reflective surfaces to accommodate a wider range of scanning applications.
Applications
- Automotive Industry
- Transportation
- Mould Inspection
- Energy Manufacturing
- Aerospace Industry
- Machine Manufacturing
