Brand Summery

The FreeScan Combo, with a small size of 193x63x53mm and weighed only 620g, has dual light sources: blue laser and infrared VCSEL.

Being a lightweight and portable metrology nscanner , it is equipped with four working modes: multiple lines scanning, single line scanning, fine scanning, infrared scanning.

It can be used to achieve metrology-grade precision inspection, reverse design, additive manufacturing, and other applications in many manufacturing sectors, including the automotive industries, aerospace, rail transportation, heavy industries, mold manufacturing, casting and foundry and medical industries.

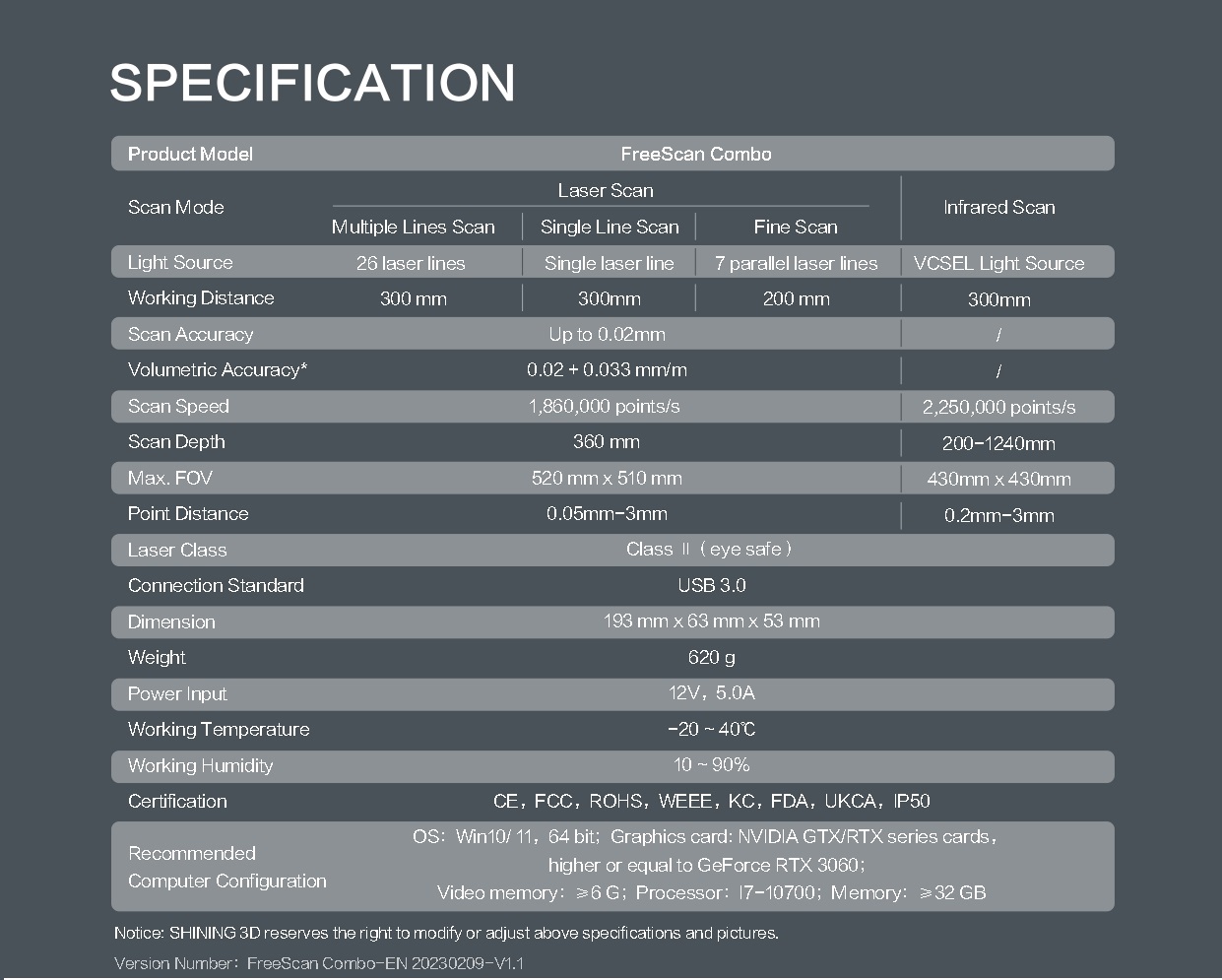

• LIGHT SOURCE :- Blue laser + Infrared VCSEL
• ACCURACY :- Up to 0.02mm
• WEIGHT :- 620g
• COMPACT SIZE :- 193mm×63mm×53mm

Features

BLUE LASER + INFRARED LIGHT

An innovative combination of blue laser and infrared light sources meets the needs of diverse industrial 3D scanning scenarios.

4 SCANNING MODES, MULTIPLE SCAN CHOICES

• 26 laser lines for global scanning
• 7 parallel blue laser lines for fine scanning details
• 1 single blue laser line to obtain deep hole data
• Infrared light source scanning fast and without markers

26 LASER LINES

Global scanning, smooth and efficient. No fear of black or reflective surface.

A WISE CHOICE FOR METROLOGY APPLICATION

Metrology-grade accuracy, the accuracy under laser scanning mode can achieve up to 0.02mm.

PRECISE AND FINE DETAIL SCANNING

Smaller scanning area with 7 parallel laser lines.

DEEP HOLE SCANNING WITH COMPLETE DATA

Optimized lens angle and single line for better acquisition of deep hole data. Ensuring complete data for full-size 3D inspection.

INFRARED LIGHT SCANNING

No markers needed for feature-rich workpieces. Infrared light source can be used directly to scan quickly.

POWERFUL AND ERGONOMIC

Ergonomic design, compact, convenient and easy to use. Metal case in line with modern industrial aesthetics.
