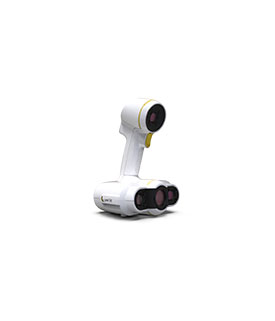

peel 2 3D scanner
Technical Specifications
peel 3d scanners go way beyond the simple spec sheet. There is a lot you should consider when shopping for a 3D scanner (included functionality, workflow, ergonomy, etc.). That being said, the specs are a good place to start with.
Software
peel 3d software is really what truly sets this solution apart. Capturing good quality data is one thing but being able to process it and properly work with it is a whole other thing. Unleash the power of Creaform's software, a leader in 3d industrial measurement and metrology. These are tools you simply will not find with another affordable solution; start working like a pro today!
Technical specifications: | peel 2 |
| Part size range (recommended) | 0.3 – 3.0 m (1 – 10 ft) |
| Accuracy | Up to 0.100 mm (0.004 in) |
| Mesh resolution | 0.500 mm (0.020 in) |
| Measurement rate | 550,000 measurements/s |
| Volumetric Accuracy (based on part size) | 0.500 mm/m (0.006 in/ft) |
| Scanning area | 380 x 380 mm (15.0 x 15.0 in) |
| Stand-off distance | 400 mm (15.75 in) |
| Depth of field | 250 mm (10.0 in) |
| Light source | White light (LED) |
| Texture resolution | 50 to 150 DPI |
| Positioning methods | Geometry and/or targets and/or texture |
| Dimensions | 150 x 171 x 251 mm (5.9 x 6.7 x 9.9 in) |
| Weight | 950 g (2.1 lb) |
| Connection standard | 1 x USB 2.0 |
| Output formats | .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr |
| Operation temperature range | 5–40°C (41–104°F) |
| Operating humidity range(non-condensing) | 10–90% |
| Certications | EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), IP50, WEEE |
