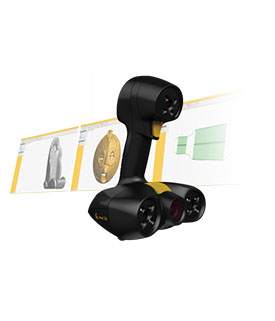

peel 2-S 3D scanner

Technical Specifications

peel 3d scanners go way beyond the simple spec sheet. There is a lot you should consider when shopping for a 3D scanner (included functionality, workflow, ergonomy, etc.). That being said, the specs are a good place to start with.


peel 3d software is really what truly sets this solution apart. Capturing good quality data is one thing but being able to process it and properly work with it is a whole other thing. Unleash the power of Creaform's software, a leader in 3d industrial measurement and metrology. These are tools you simply will not find with another affordable solution; start working like a pro today!

Technical specifications:

peel 2-S

Part size range (recommended)0.05 – 0.5 m (2 – 20 in)
AccuracyUp to 0.100 mm (0.004 in)
Mesh resolution0.100 mm (0.004 in)
Measurement rate550,000 measurements/s
Volumetric Accuracy (based on part size)0,500 mm/m (0.006 in/ft) *
Scanning area143 x 108 mm (5.6 x 4.3 in)
Stand-off distance380 mm (15 in)
Depth of field100 mm (4 in)
Light sourceWhite light (LED)
Texture resolution50 to 250 DPI
Positioning methodsGeometry and/or targets and/or texture
Dimensions154 x 178 x 235 mm (6 x 7 x 9.2 in)
Weight930 g (2.1 lb)
Connection standard1 x USB 2.0
Output formats.dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
Operation temperature range5–40°C (41–104°F)
Operating humidity range(non-condensing)10–90%
CerticationsEC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), IP50, WEEE
