Specification/scope of supply

Max component length1830mm
Max component width1220mm
Max component thickness350mm
Max component weight400kg
Measuring accuracy, length & width**+/- 35 / 70 µm*
Measuring accuracy, height** (optional)+/- 100 µm
Measuring speed**<0.25sec
CameraIndustrialized ultra high resolution professionally mounted in sealed enclosure
Computer processorIntel Quad Core
Processor speed<3GHz
Hard disk<125Gb
Screen20 inch flatscreen or better
Peripheral equipmentKeyboard and optical mouse
Operating softwareWindows 10 64 Bit
Proprietary InspecVision softwareInspection, SPC, Reporting, Reverse engineering
Computer cabinet (Optional)Industrial dust-proof enclosure
Data cableUSB2 or USB3
KVMKeyboard, Video Display & Mouse stand (PC integrated into light table assembly)
Light table constructionFrame with removable sheet metal cladding
Light table measuring surfaceLaminate glass, toughened with integral diffusion layer
Light sourceHigh efficiency LEDs
Mast constructionHeavy folded sheet metal construction
Power supply230 Volt, single phase, 50Hz or 110 Volt, single phase, 60Hz on request
Power consumption13 Amp maximum at 230 Volt, 20 Amp max at 110 Volt
Protective devicesCircuit breakers, mounted at rear of light table
Control panel Control switches for power, camera and lights. Main power indicator
EC directivesCompliant with Machinery, Low voltage and EMC Directives
Paint colour (powder paint)RAL5013 (cobalt blue)
Ambient operating conditions10-30 degree C

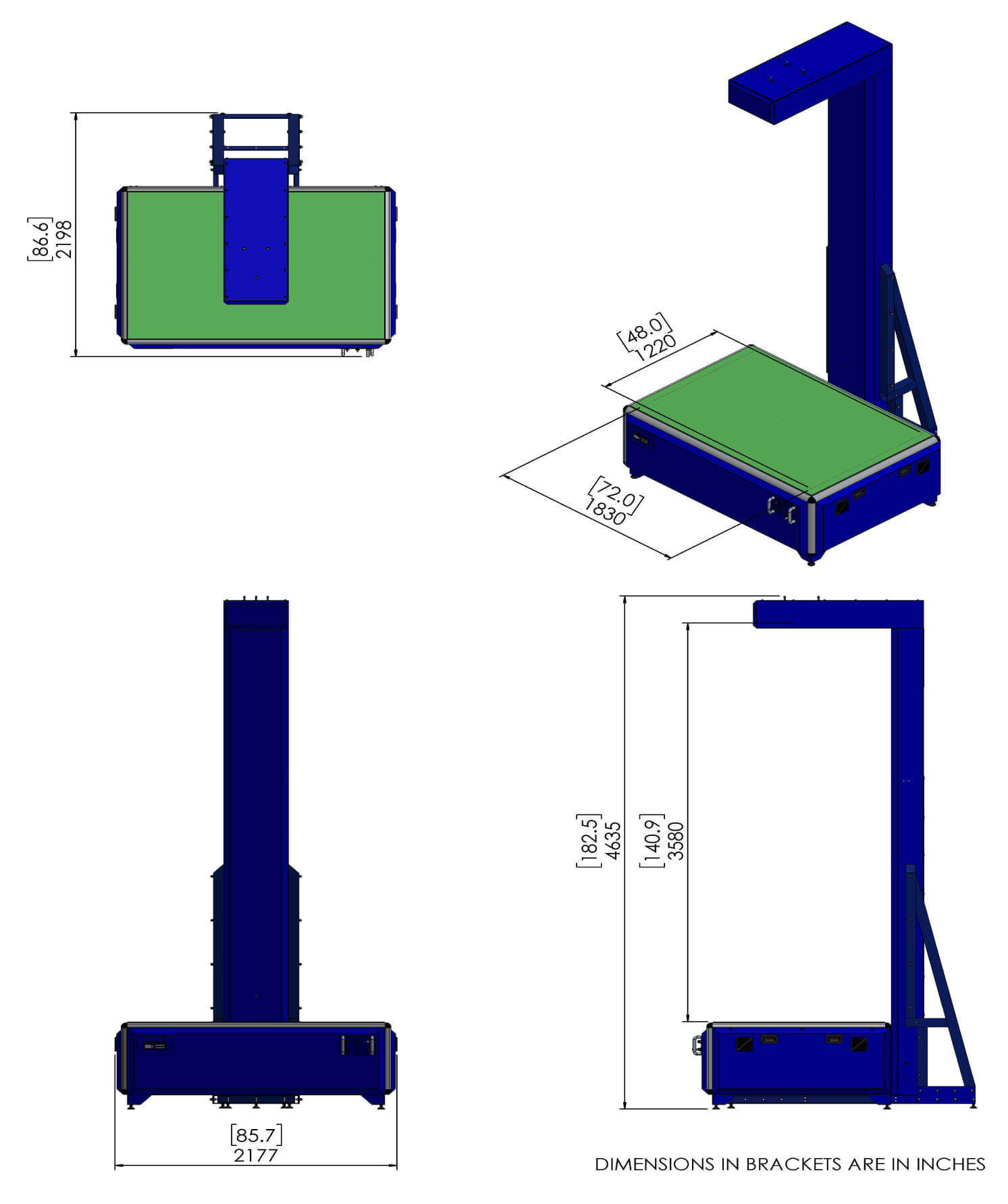

Approx Footprint/installed width/ depth/ height/ weight of installed Light table and Mast 2177mm (W) x 2198mm (D) x 4635mm (H) <950kgs
Approx Footprint/installed width/ depth/ height / weight of KVM) 710mm (W) x 472mm (D) x 1739 (H) <95kgs
Standard packing Export crates suitable for sea shipping (2 nos)
WarrantyOne year limited warranty on hardware and software
Optional extended warrantyTwo or three year extended warranty (requires software upgrade option)
Software support optionAnnual support contract provides free software upgrades
